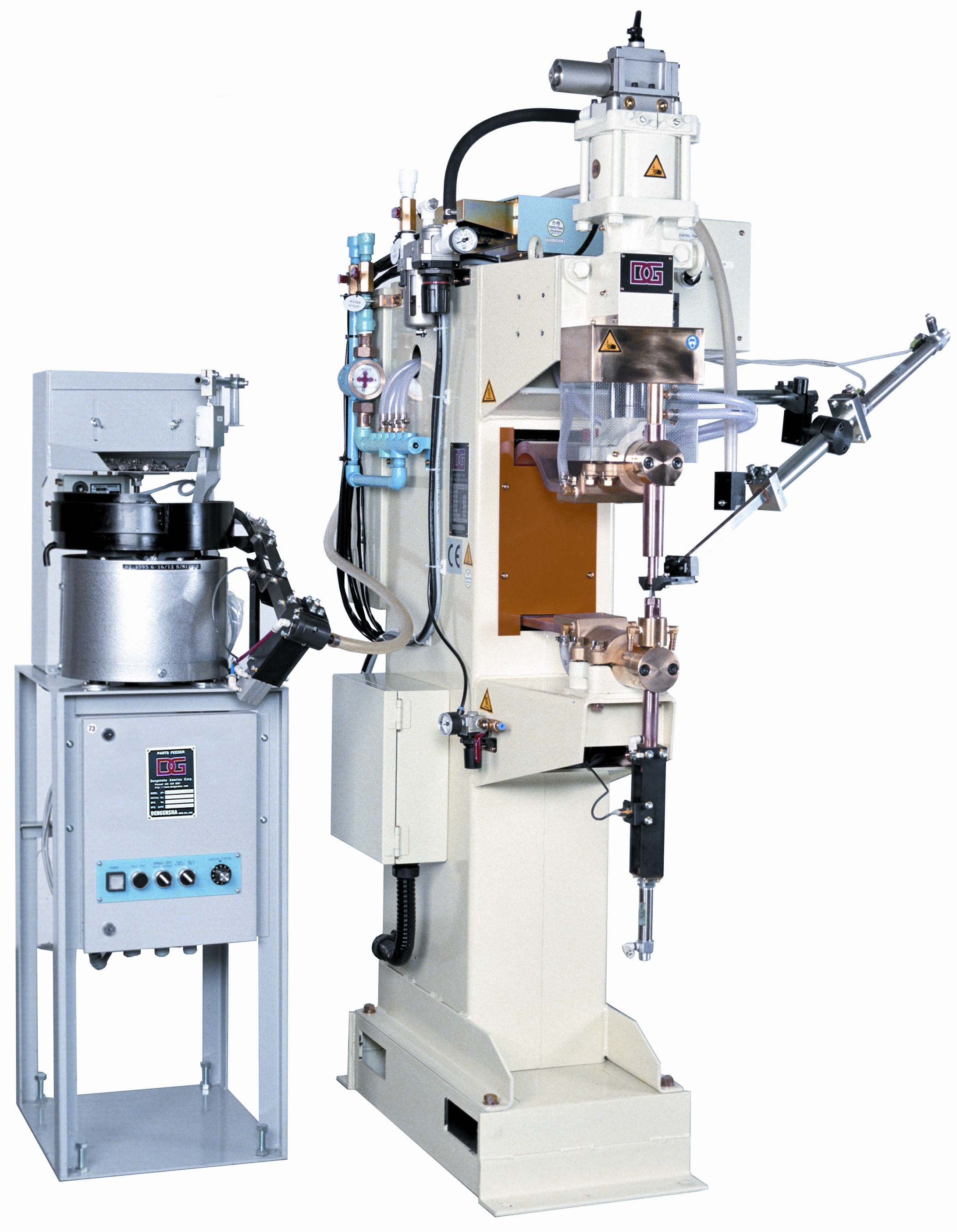

Bolt Feeder and Welder Combination
Bolt Feed Unit

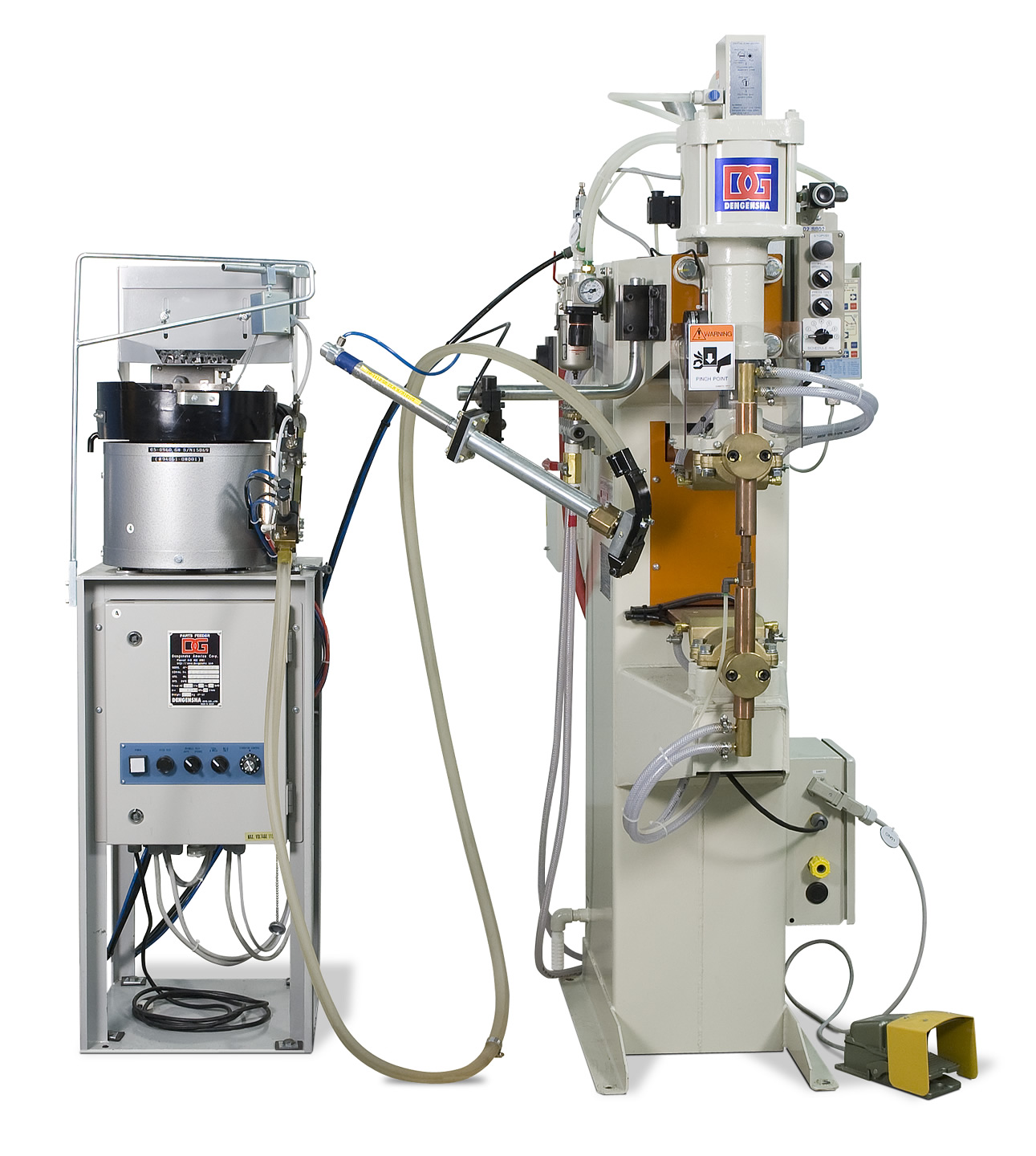

Bolt Feeder and Welder Combination

Vibratory Bolt Feeder

Dengensha’s traditional standard vibratory bolt feeders provide reliable and durable nut feeding process.

  • Contact Us
  • Vibratory Bolt Feeder Brochure
Additional Product Details
  • Vibratory bowl 300mm, vinyl coated
  • Keyance PLC microprocessor transistor output
  • Programmable screen controls PLC without a laptop
  • Dual key locked control panel prevents unauthorized access
  • Manual controls on outside of control panel
  • 3 meter flexible vinyl tube

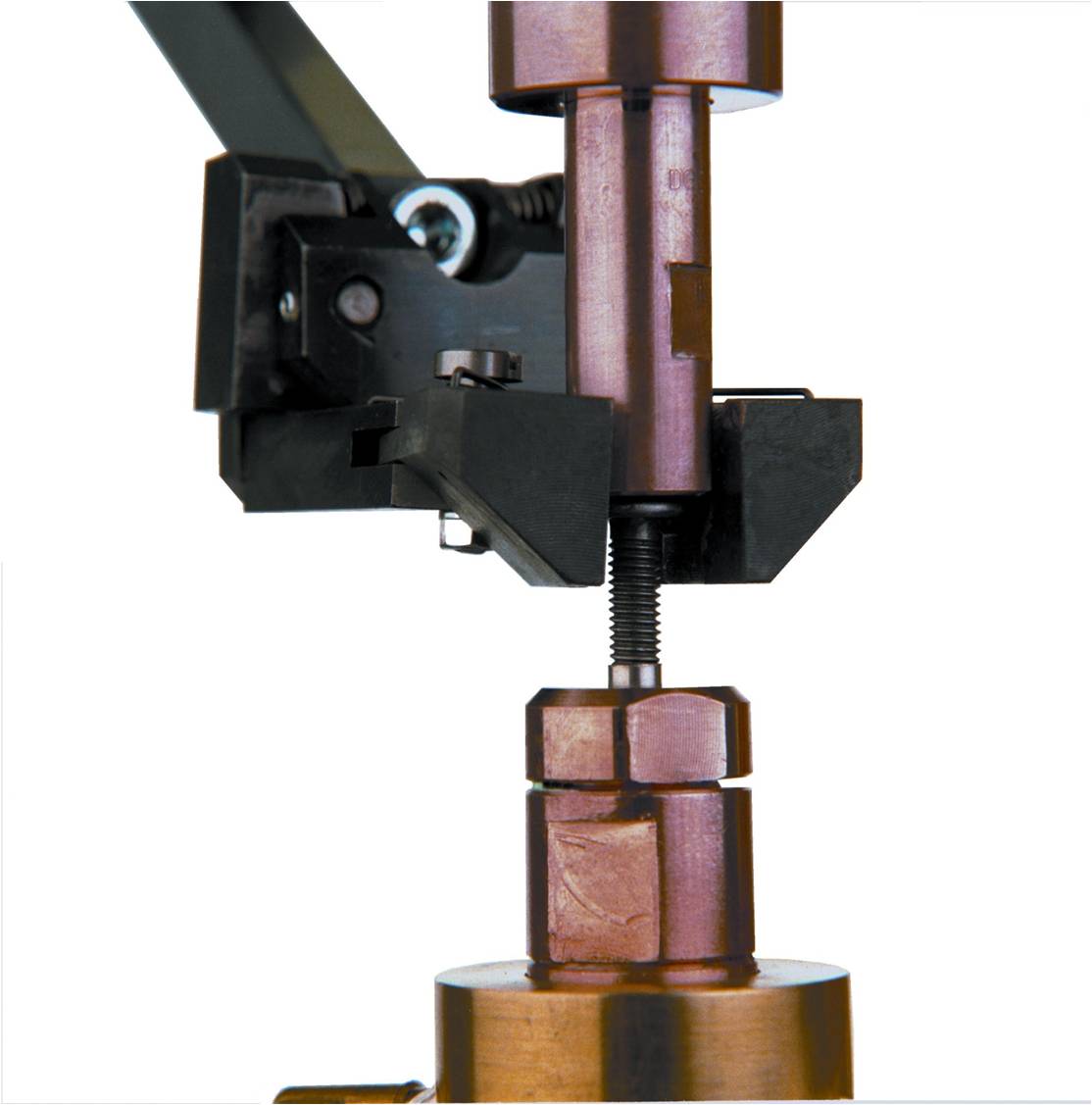

  • Spring-loaded chuck jaw feed unit 200mm stroke
  • Concave guide pin Locates and ejects bolts concentrically
  • Universal mounting bracket mounts feed unit at almost any angle
  • 7-liter bulk hopper with limit switch
  • Vinyl dust cover prevents contamination from spatter
  • Complete pneumatic system with regulator and filter
  • High feed rates up to 30 bolts/minute
  • Bolt separator remote feed unit to blow one bolt at a time
Vibratory Bolt Feeder
Selection Capability 30/min
Feeding Stroke 200/300mm
Head Diameter 9 – 20mm
Thread Diameter M5 – M10
Body Length 11 – 32mm
Feed Type Single, Double

Recommended Related Links

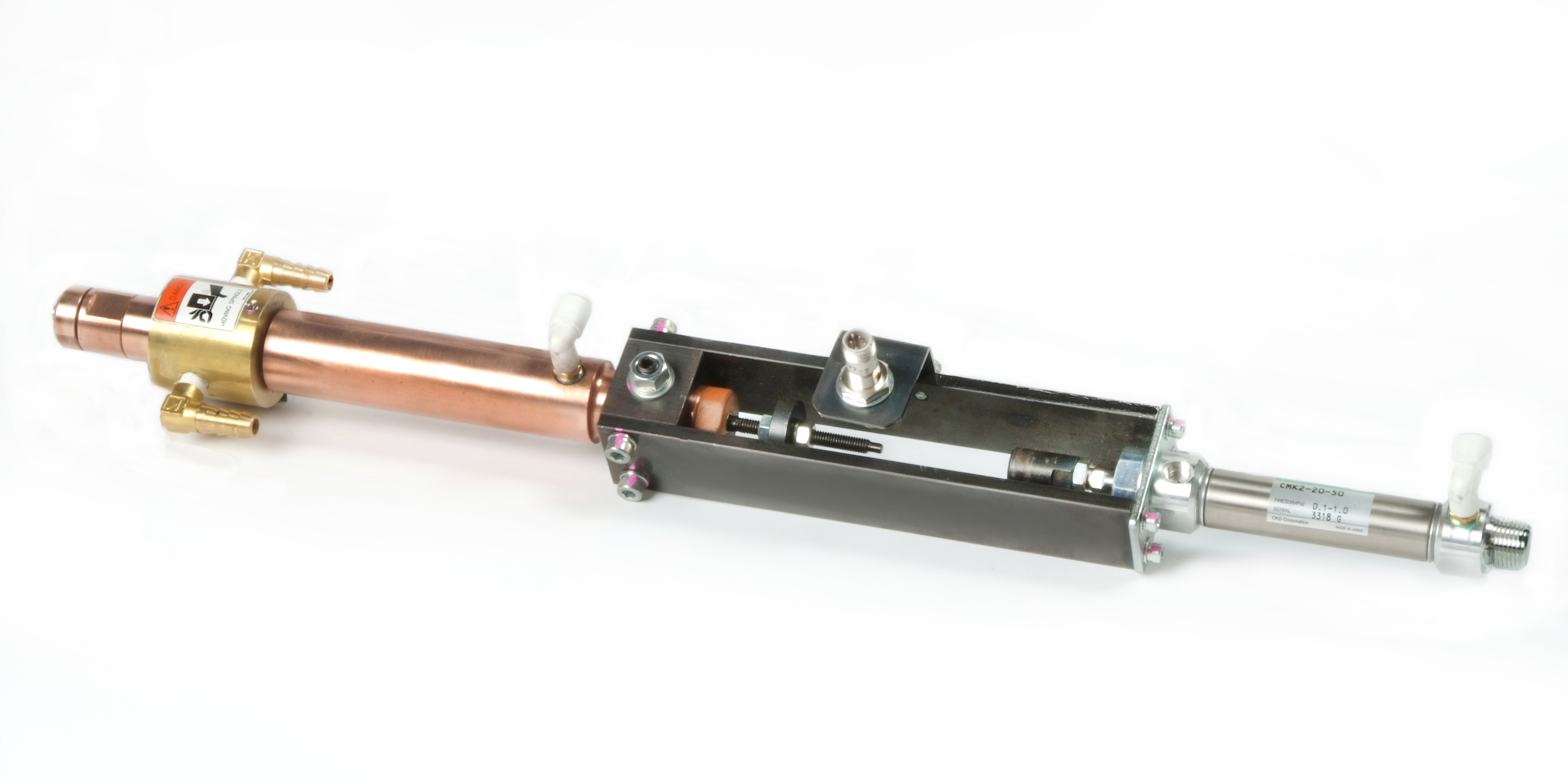

  • Bolt Feeder Electrode Assembly

    Dengensha America stocks the most commonly requested consumables for its bolt feeders, assuring that you get the correct replacements –…

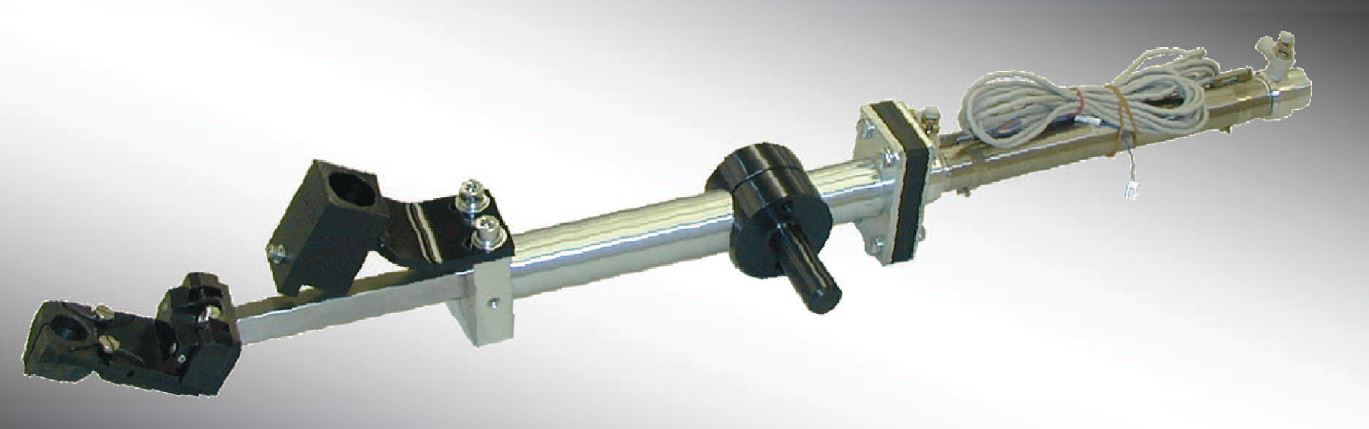

  • Bolt Feed Unit
